MoCA with antenna TV
Yes, you can usually use MoCA in a home that uses an over-the-air (OTA) antenna. The key rule is simple: MoCA can share coax with an antenna feed, but you must keep the MoCA network inside your home and avoid parts that block MoCA frequencies.
This page is for a common scenario: your coax is not ‘cable TV’ anymore, it’s an antenna distribution system (or a mix of antenna plus old coax runs). You want to reuse those coax jacks to create a stable wired link for a mesh node or access point.
Quick answer
MoCA + OTA works when your coax jacks connect through a MoCA-friendly splitter path and you treat the antenna feed as the point-of-entry for filtering/isolation. If you’re new to MoCA, read What is MoCA? first. If your goal is fewer dead zones, the payoff move is wired backhaul for mesh.
On this page
Can MoCA and an antenna share the same coax?
Usually, yes. MoCA (networking) and OTA antenna signals (TV) occupy different frequency ranges. In many homes they can coexist on the same coax plant. The practical issues are almost never ‘frequency overlap’ and almost always splitters/amps/filters/topology.
That’s why the first step is always: understand your coax ‘tree’ and verify you have a clean path between the rooms you want to connect. Reference: MoCA for beginners (diagram + setup).
Your coax topology: what has to be true
- All MoCA endpoints must share the same coax tree. If your antenna system only feeds a subset of jacks (or you have multiple disconnected splitters), MoCA won’t see the other room.
- Keep the MoCA network contained. With cable ISP, the provider drop is the entry point. With OTA, the antenna feed is often the entry point.
- Use MoCA-rated splitters. Old splitters are the #1 failure mode. See: MoCA splitters & POE filters.
Filters: POE vs LTE/5G filters vs antenna preamps
POE (Point-of-Entry) MoCA filter: In cable ISP setups, this goes at the provider entry. In OTA setups, you may want a filter to keep MoCA energy inside the coax plant and improve stability. If your coax connects to anything outside your home (shared building coax, long outdoor runs, etc.), treat that connection as the entry point. Placement rules: MoCA POE filter placement.
LTE/5G filters: Some antennas use an LTE filter to reduce cell interference. That’s fine, but verify it doesn’t block the frequencies your MoCA gear uses. If you add filters and MoCA dies, remove them one at a time to identify the blocker.
Antenna preamps/boosters: Many coax amps do not pass MoCA (or only pass it on a dedicated port). If you have a preamp or distribution amp and MoCA won’t link, assume the amp is the culprit until proven otherwise. Troubleshooting flow: MoCA troubleshooting.
Splitters/amps that break MoCA (common gotchas)
- Legacy splitters: if it tops out at 1000 MHz, it can be unstable for MoCA. Replace with MoCA-rated (often 5 to 1675 MHz).
- One-way amps: many antenna distribution amps are directional or block MoCA return paths.
- Too many splits: every split adds loss. Simplify the path where possible.
Two common setup patterns
Pattern A: Antenna-only home (no cable ISP coax)
- Confirm the rooms you care about are on the same splitter tree.
- Replace the main splitter with a MoCA-rated splitter if needed.
- Add two MoCA adapters: one at the router, one at the remote room.
Shopping shortcut: MoCA starter bundle.
Pattern B: Cable internet + OTA antenna on coax
This is the trickier ‘mixed plant’ case. You need to isolate the MoCA network correctly so it stays in-home and doesn’t get blocked by amps/filters.
Start with the parts rules: splitters & POE filter, then use MoCA troubleshooting if link lights don’t come up.
Using MoCA for mesh backhaul (best ROI)
If your goal is fewer dead zones and fewer drops, the best use of MoCA is feeding a mesh node or access point over Ethernet so it stops relying on wireless hops. Big picture: wired backhaul for mesh.

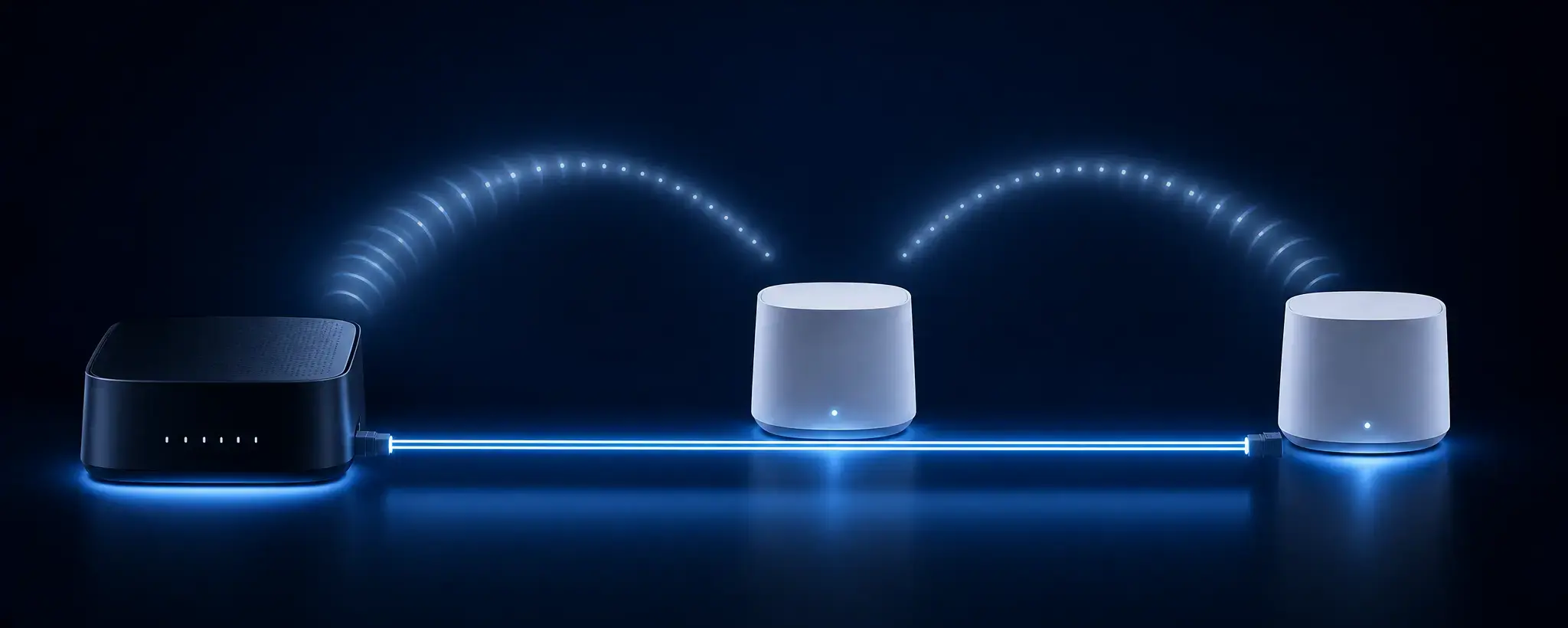

Diagram
Wired backhaul replaces “hop after hop through walls” with a stable wired link. That usually improves speed and consistency.
If it doesn’t work: fast triage
- No MoCA link light: disconnected coax tree, blocker amp, or wrong splitter.
- Link light but slow/flaky: legacy splitter, too many splits, bad jumpers, missing/incorrect filter placement.
- Works until the TV is on: suspect an amp/filter interaction or a marginal coax connection.
Use the checklist: MoCA troubleshooting. Reference parts: MoCA splitters & POE filters.
Next steps
- MoCA basics: What is MoCA?
- Diagram setup: MoCA for beginners
- Parts that matter: Splitters & POE filters
- Placement rules: POE filter placement
