Spectrum MoCA setup

Spectrum (Charter) is a common case where people have coax everywhere but still end up with a weak mesh link. The good news: you can usually use MoCA to turn those coax jacks into a wired network for your mesh nodes, without running Ethernet.

What this solves (and what it doesn’t)

• Solves: slow/unstable mesh nodes caused by a weak wireless hop (buffering, jitter, random drops, inconsistent speeds).
• Doesn’t solve: a pure placement issue. If you haven’t yet, do a fast Wi‑Fi walk test so you’re not wiring a bad layout.

Background: wired backhaul for mesh and What is MoCA?.

Step 0: make sure the coax jacks are actually connected together

MoCA only works if the coax jack near your router and the coax jack in the remote room live on the same in-home coax tree (typically through a central splitter). If the home has multiple disconnected coax runs, MoCA will never ‘see’ the other room until those runs are joined at the splitter panel.

Step 1: identify your Spectrum setup (this determines 1 adapter vs 2)

Spectrum commonly provides a modem-only device plus a separate Wi‑Fi router (yours or Spectrum’s). Most modem-only devices do not provide MoCA LAN bridging. That’s why the two‑adapter pattern is the default.

Step 2: fix the coax ‘plumbing’ first (splitters + POE filter)

With Spectrum, the coax parts are the #1 reason MoCA is flaky. Before chasing settings, make sure your coax path is MoCA-friendly:

• Use a MoCA-rated splitter: look for a splitter rated to at least ~1675 MHz.
• Add/confirm a POE filter: install it where coax enters the home, before the first splitter (POE filter placement guide).
• Avoid unknown amps: some coax amplifiers block MoCA. If you have one, you may need a MoCA-bypass or to rework the coax tree.

Deep dive: MoCA splitters & POE filters.

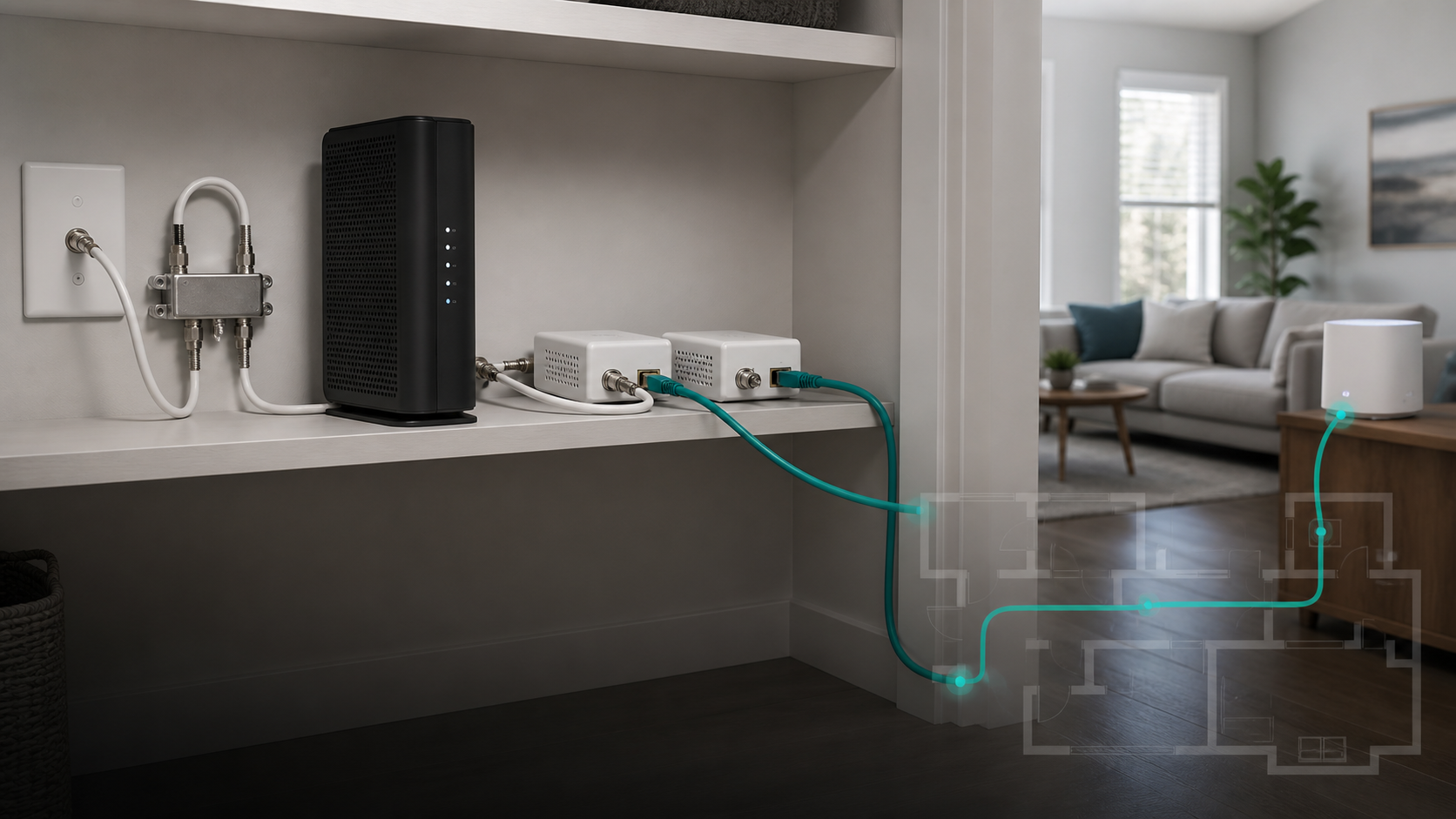

Option A (recommended for Spectrum): two-adapter MoCA backhaul

This is the most reliable Spectrum pattern because it doesn’t depend on Spectrum firmware features. One adapter creates MoCA on the coax, the other converts it back to Ethernet in the remote room.

1. Router-side adapter: connect the adapter to a LAN port on your router (Ethernet) and to the home coax (coax).
2. Remote-room adapter: connect coax from the wall to the adapter, then Ethernet from the adapter to your mesh node (or a small switch if you need multiple ports).
3. Confirm status: both adapters should show a coax/MoCA link light. In your mesh app, the node should report wired/Ethernet backhaul.

If you want a safe shopping list, start with MoCA starter bundle. If you’re comparing models, use best MoCA adapters.

Option B (sometimes): one-adapter setup if your router/gateway provides MoCA

If your router/gateway can act as the MoCA bridge (less common in Spectrum installs, but it happens with certain all-in-one gateways), you can sometimes use just one adapter in the remote room:

1. Enable MoCA / LAN over Coax in the router/gateway UI if available.
2. At the remote room, connect coax to a MoCA adapter, then Ethernet to the mesh node.
3. Verify the node reports wired backhaul.

If you can’t find a MoCA setting, don’t waste time: switch to the two‑adapter setup.
